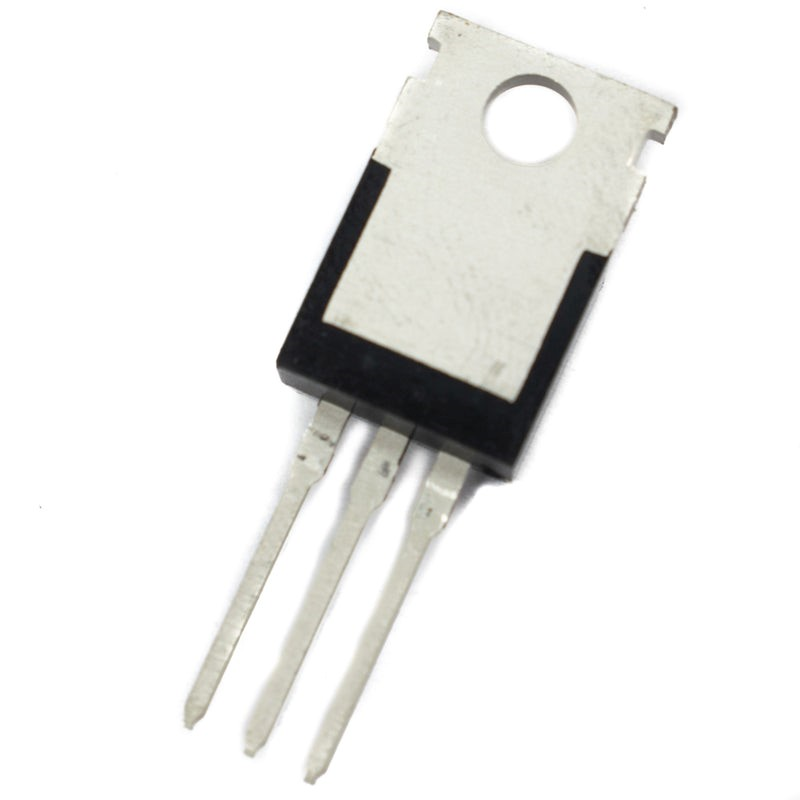

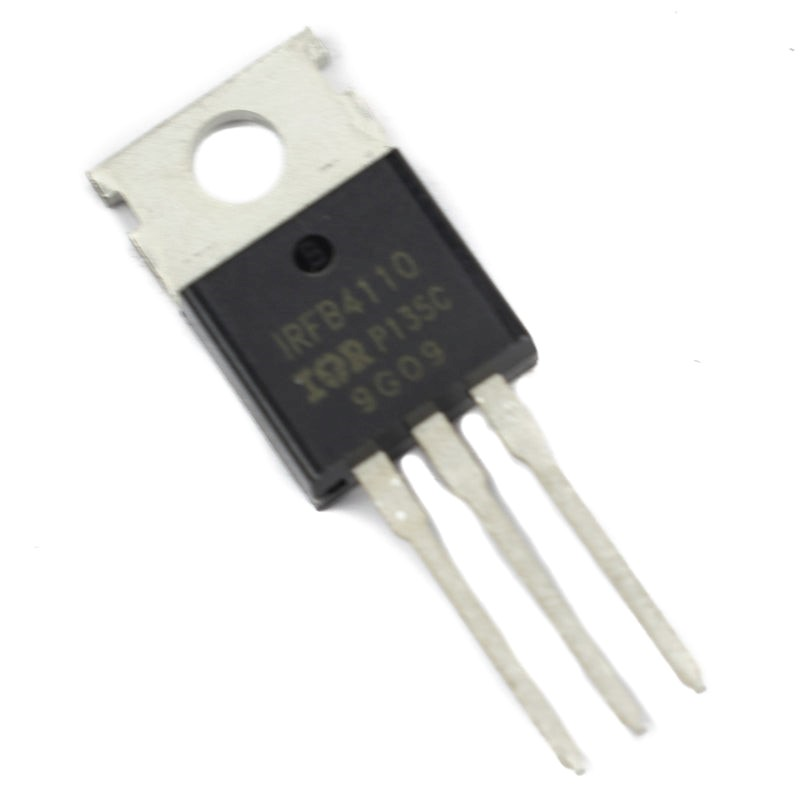

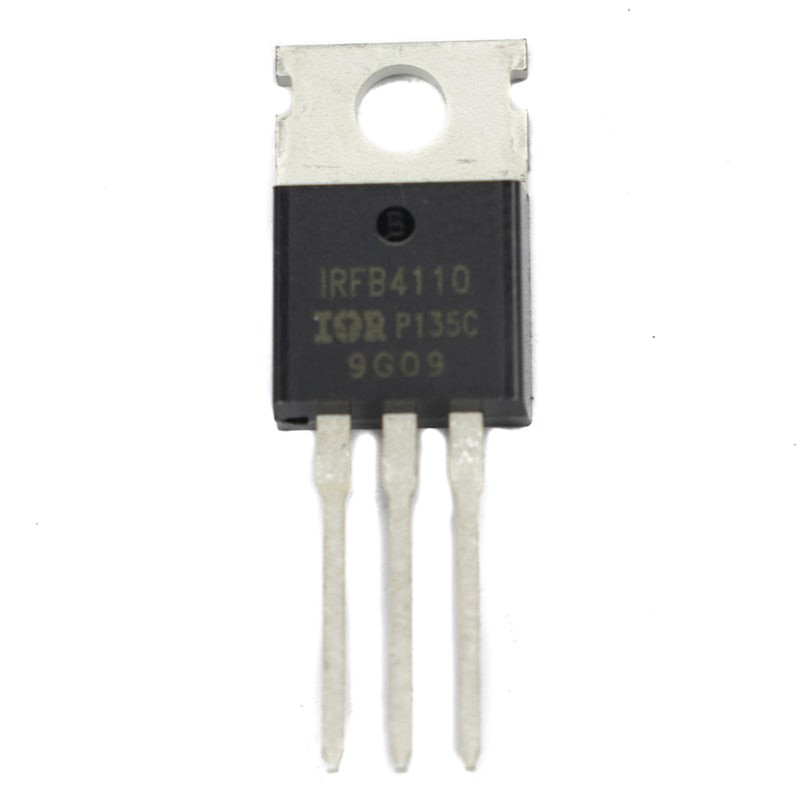

Infineon IRFB4110 N-Channel MOSFET

Product Code :- BE0033

Add your review

17% off

120INR100 INR

Availability:In Stock

Get GST invoice and save up to 18% on business purchases. 1 Option


Description

The IRFB4110PBF is a 100V single N-channel HEXFET® Power MOSFET with extremely low on-resistance per silicon area and fast switching performance using Trench MOSFET technology. Suitable for high efficiency synchronous rectification in SMPS, uninterruptible power supply, high speed power switching, hard switched and high frequency circuits.

Features
  • Improved Gate, Avalanche and Dynamic dv/dt Ruggedness
  • Fully Characterized Capacitance and Avalanche SOA
  • Enhanced body diode dV/dt and dI/dt Capability
  • Lead Free
  • RoHS Compliant, Halogen-Free
    • Applications
  • High Efficiency Synchronous Rectification in SMPSUninterruptible Power Supply
  • High Speed Power Switching
  • Hard Switched and High Frequency Circuit

    • Highlights

  • Type of Control Channel: N-Type
  • Max. Drain-Source Voltage: 100V
  • Max. Gate-Source Voltage: 20V
  • Pulsed Drain Current: 670A
  • Continuous Drain Current, VGS @ 10V: 130-180A
  • Max. Operating Junction Temperature: 175°C
  • Peak Diode Recovery: 5.3V
  • Max. Power Dissipation: 370W
  • Package: TO-220
  • Mounting: Through Hole

    • Download Data Sheet

  • Click Here
